- Model

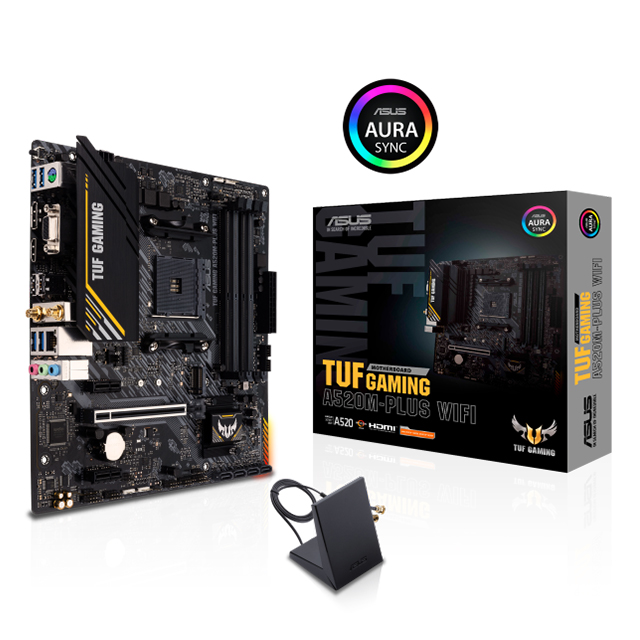

TUF GAMING A520M-PLUS WIFI
CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop ProcessorsxRefer to www.asus.com for CPU support list.
x Refer to www.asus.com for CPU support list
Chipset
A520
Memoria
Memory Channels: 4DDR4 (Dual channel)
Max Memory Size: 128GB
4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memoryx
Dual Channel Memory Architecture
xECC Memory (ECC mode) support varies by CPU.
xRefer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Gráficos
1 x D-Sub
1 x HDMI® portxxx
1 x DisplayPort 1.2

1 x HDMITM 2.1(4K@60Hz)
1 x D-Sub
xGraphics specifications may vary between CPU types.
Ranuras de expansión
1 x PCIe 3.0 x16 (x16 mode)
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots

Almacenamiento
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10

Ethernet
1 x Realtek 1Gb Ethernet
TUF LANGuard
1 x Realtek 1Gb Ethernet
TUF LANGuard
Wireless y Bluetooth
Realtek Wi-Fi 5 8821CE
1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
Supports dual frequency band 2.4/5GHz
Supports channel bandwidth: HT20/HT40/HT80
Bluetooth v5.0
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
ALC887/897
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODECx
- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
xA chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

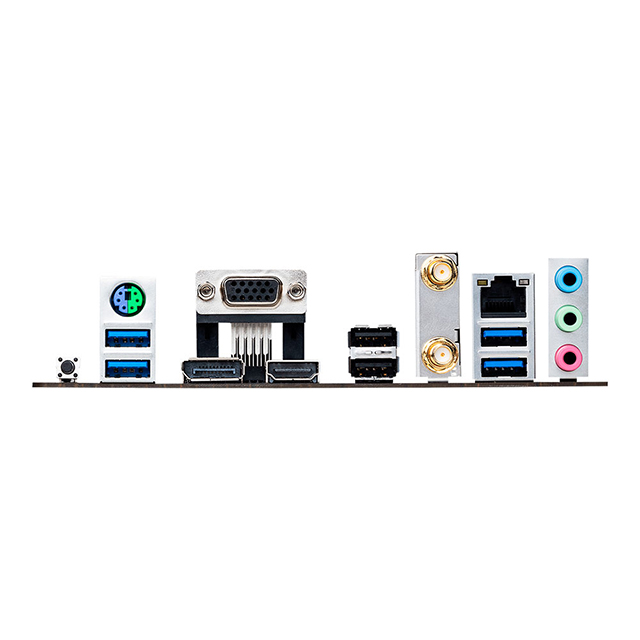

Puertos E/S traseros
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub
1 x ASUS Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
Puertos internos
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header
neous2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Funciones especiales de ASUS
ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manejabilidad
WOL by PME, PXE

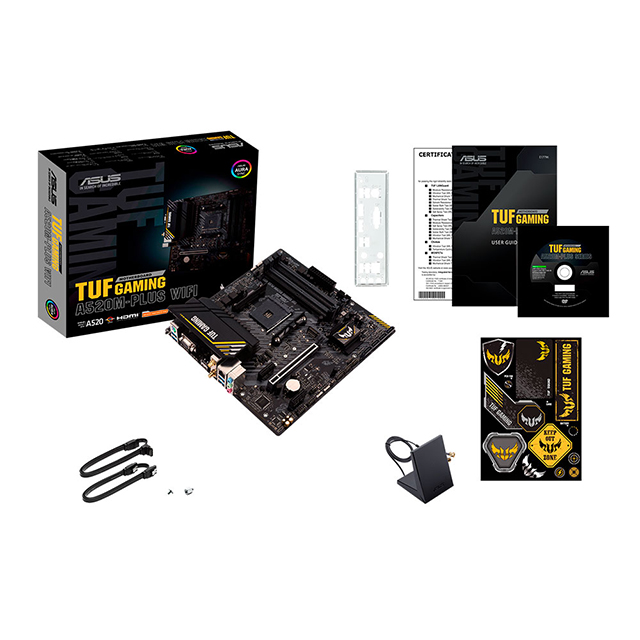

Accesorios
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual
Sistema operativo
Windows 10 64bit
Windows® 10 64-bit
