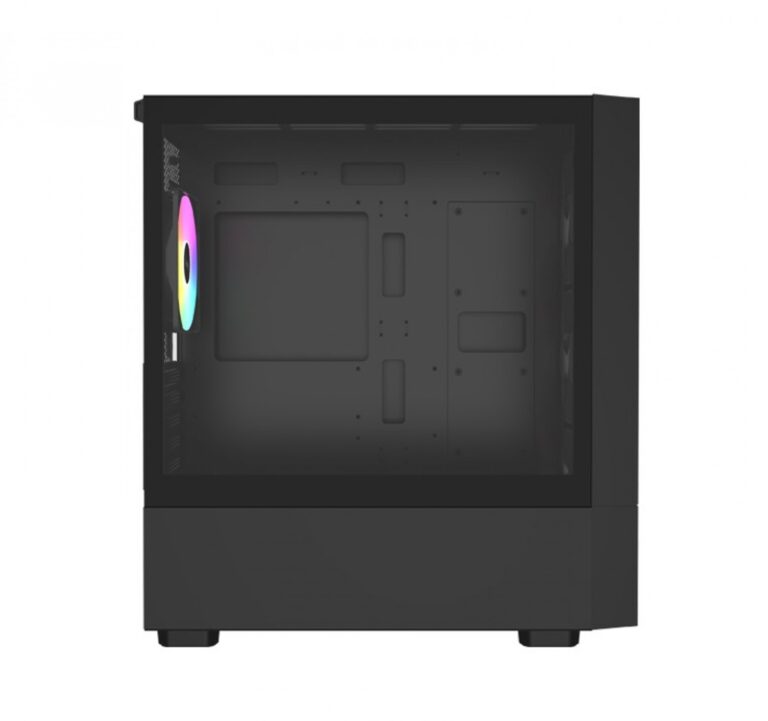

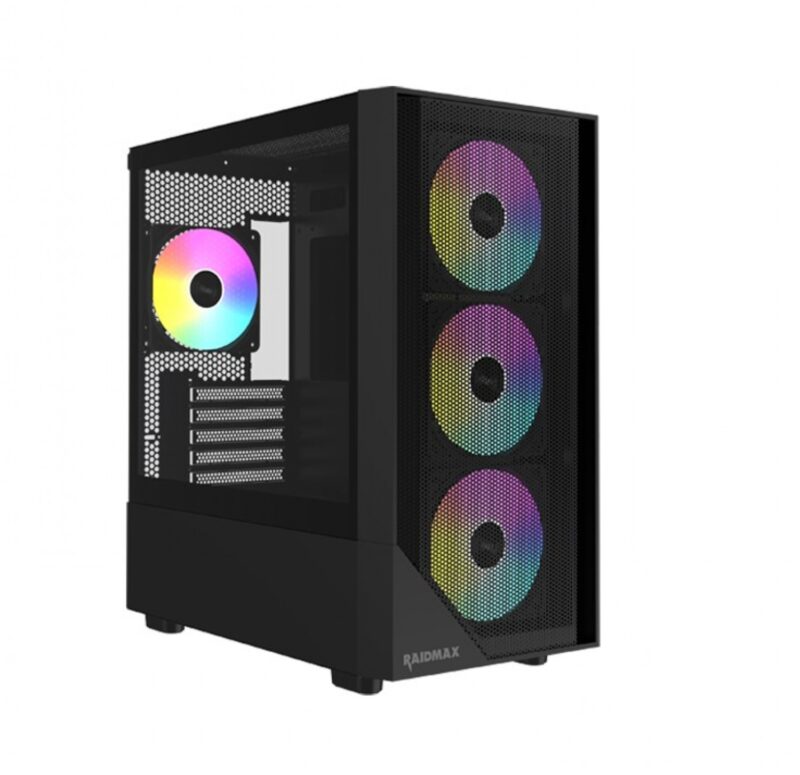

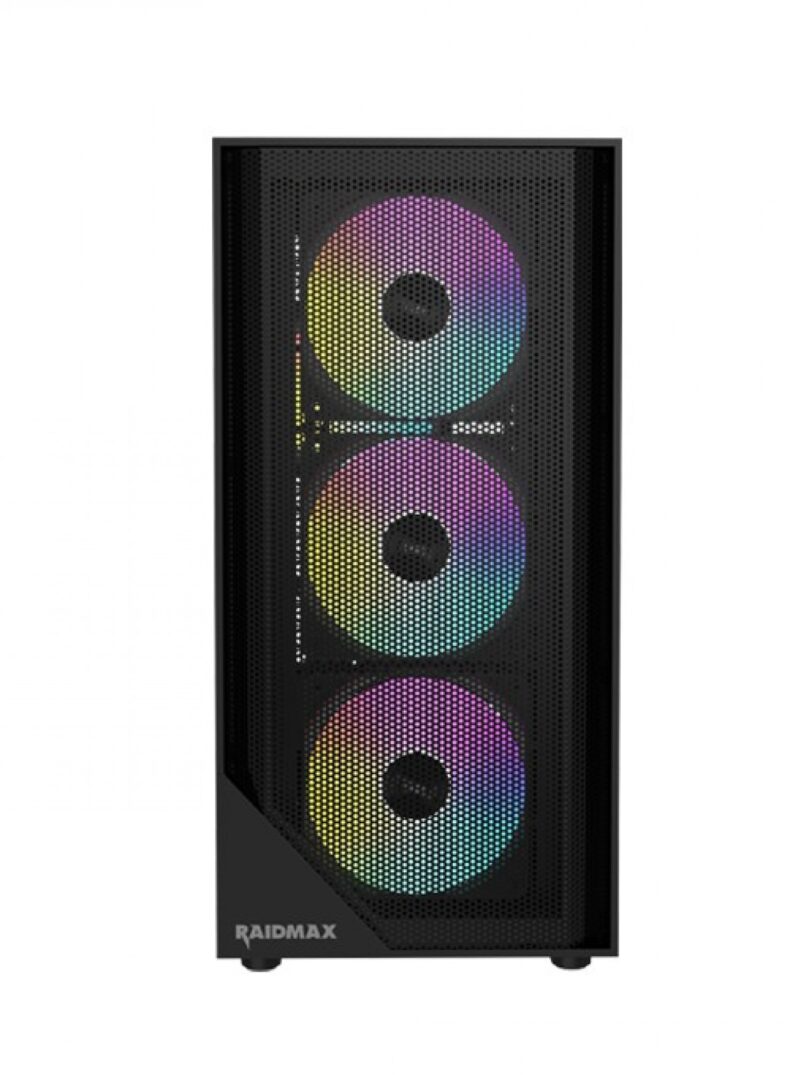

- PRODUCT NAME X609 M
PRODUCT NO. X609MTBF
DIMENSIONS (mm) 398(L) x 215(W) x 446(H)
MOTHERBOARD SUPPORT Micro-ATX / Mini-ITX
EXPANSION SLOTS 5
MATERIALS Plastic, Steel, Tempered Glass
3.5"HDD / 2.5"SSD 2 / 3
I/O Ports USB3.0 x 1, USD2.0 x 2, HD Audio, Power, Reset
FAN Support Front: 120mm x 3 / 140mm x 2, Top: 120mm x 2 / 140mm x 2, Rear: 120mm x 1, PSU Chamber: 120mm x 2
PREINSTALLED FAN (s) ARGB LED Fan 120mm x 3 (front) / ARGB LED Fan 120mm x 1 (rear)
RADIATOR Support Front: 240/280mm , Top: 240/280mm , Rear: 120mm
MAX. GPU LENGTH 340mm
MAX.CPU COOLER HEIGHT 165mm
LEFT SIDE PANEL Tempered Glass
RIGHT SIDE PANEL Steel
PSU SUPPORT Standard PS2 / ATX PSU ( Bottom Mounted)
