- Model

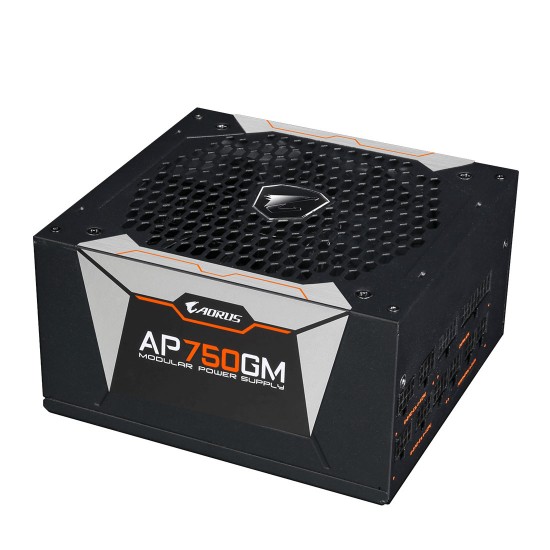

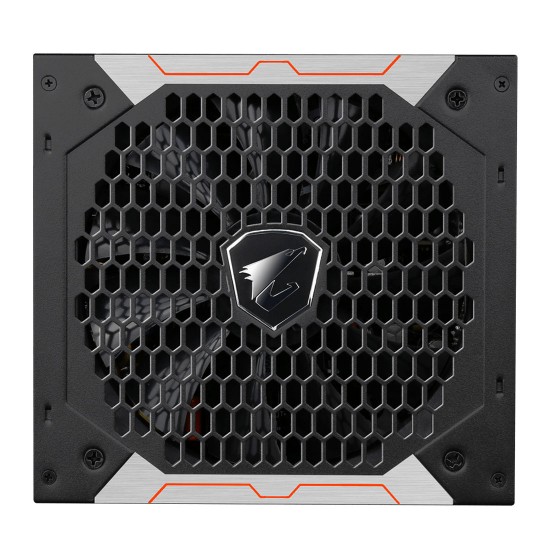

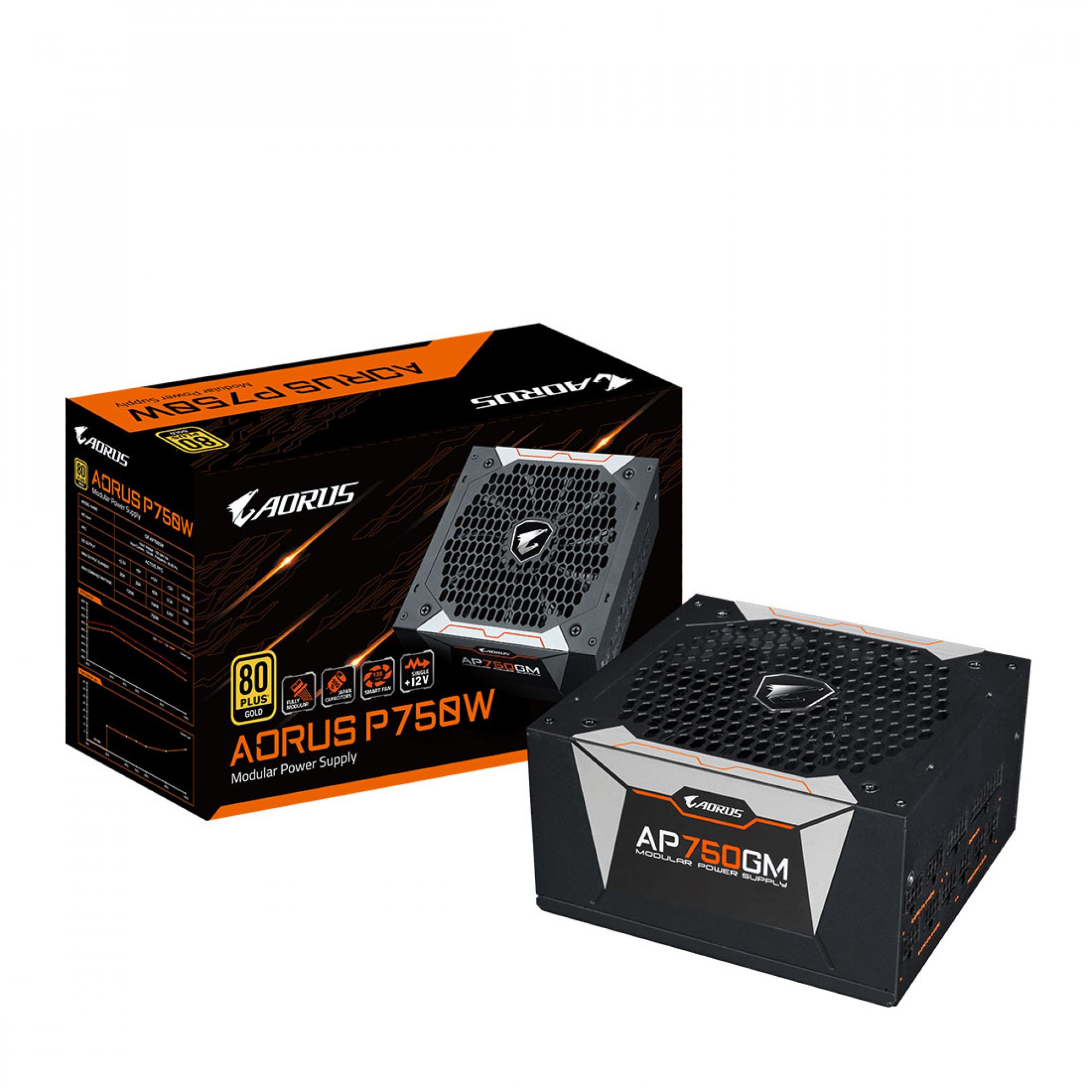

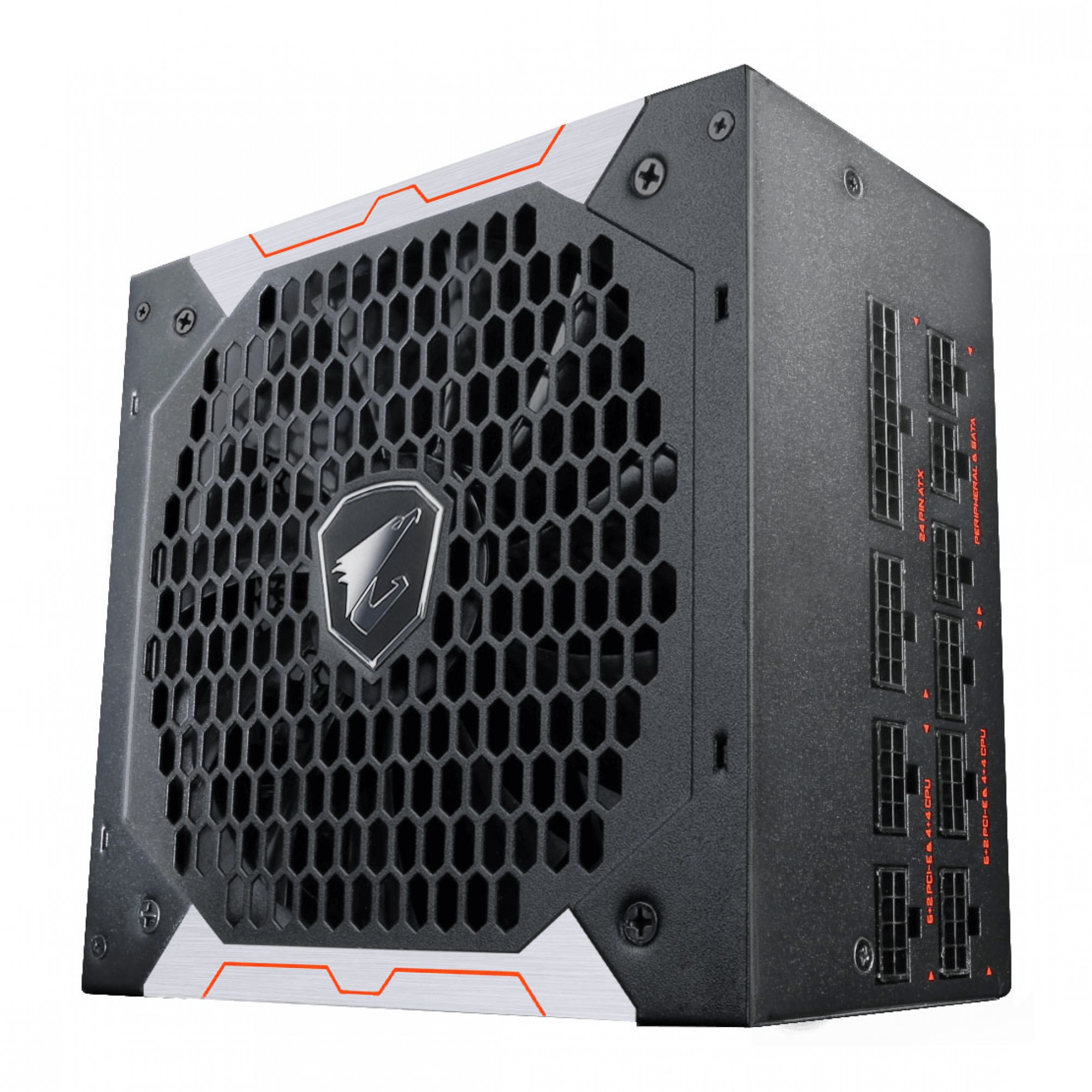

GP-AP750GM
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC (0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
10A
Input Frequency
47-63 Hz
Output Capacity
750W
Dimension
150 x 160 x 86mm
Fan Type
135mm Double ball bearing fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100ms ~ 150ms
Hold Up Time
16m sec at full load (115V)
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mmx1 , 650mmx1
PCI-e 6+2 Pin x 4 : 750mmx2 , 650mm+150mmx1
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mmx1
450mm+100mm+100mm+100mm x1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mmx1
4 Pin Floppy x 1 : 100mm
